Taming the
Cisco Nexus 9000

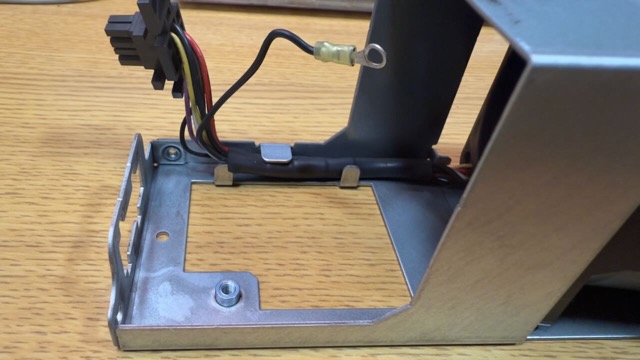

1. Lift the self-aligning connector and grounding terminal to straighten the fan harness.

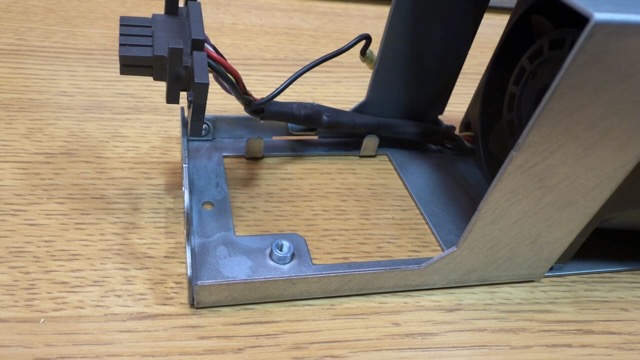

2. Gently lift the fan harness free of the securing tabs. The harness is shrink-wrapped at this point so it's a tight fit.

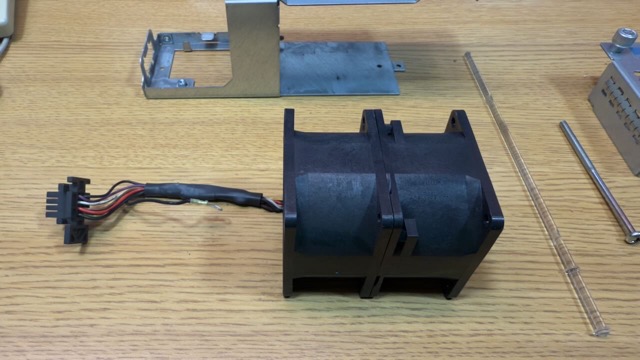

3. With the fan harness free, the tandem fan assembly will lift out of the frame.

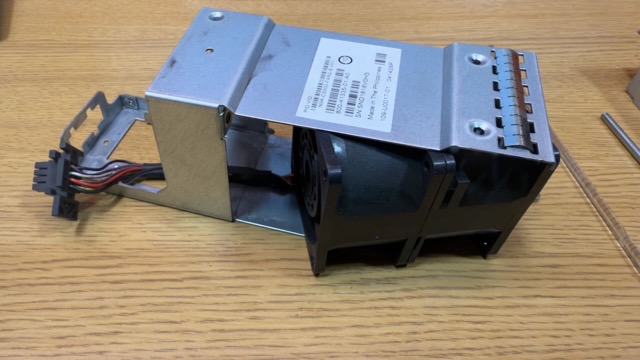

4. Third checkpoint: fan assembly separated from frame.
